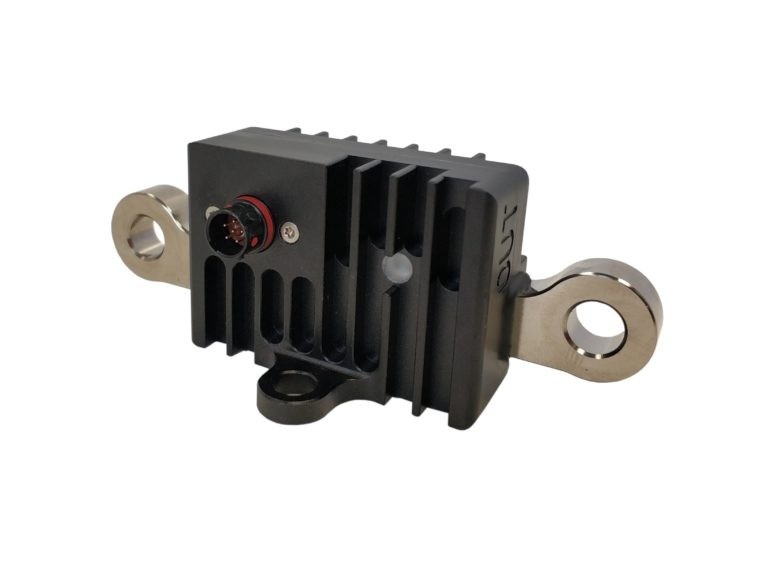

ECUMASTER BATTERY ISOLATOR CAN BUS
DETALHES
REFERÊNCIA:
BATTERY
DESCRIÇÃO:
_Weight: 83g _Dimensions: 50mm x 100mm x 38.5mm _Voltage range: 6V _ 19V, 28V transient (12V automotive installations only) _Operating temperature range: -40C + 125C _Current capability: 300A continuous, peak up to 1000A _Current measurement resolution 4A _Current measurement range: -1000A to 1000A _Current measurement accuracy: ?10% _Inductive load switching capability: 600mJ _Enclosure: Anodized aluminium, IP67 rated _ High current terminals: M8 nickel plated terminals or Radlok connectors _Signal connector: Deutsch ASX202-06PN (mating plug ASX602-06SN included) _Power save state current consumption:
_Weight: 83g _Dimensions: 50mm x 100mm x 38.5mm _Voltage range: 6V _ 19V, 28V transient (12V automotive installations only) _Operating temperature range: -40C + 125C _Current capability: 300A continuous, peak up to 1000A _Current measurement resolution 4A _Current measurement range: -1000A to 1000A _Current measurement accuracy: ?10% _Inductive load switching capability: 600mJ _Enclosure: Anodized aluminium, IP67 rated _ High current terminals: M8 nickel plated terminals or Radlok connectors _Signal connector: Deutsch ASX202-06PN (mating plug ASX602-06SN included) _Power save state current consumption:
ESPECIFICAÇÕES:
2000g
POR ENCOMENDA, pedir informação de disponibilidade
QTD.
-
+
