BLOW OFF VALVES - QRJ

BLOW OFF VALVES - QRJ

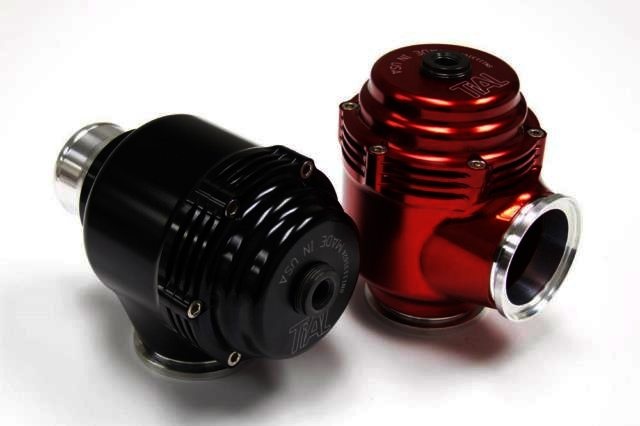

The QRJ is the latest boost control valve from TiAL. Designed with the needs of high performance recirculating systems in mind. The QRJ features a new body design, compact installation envelope, high-flow capacity, and configurable inlet and outlet ports.

FEATURES:

• For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.50 in (38.5mm) valve.

• Optional configurations of Hose and or V-band connections for the inlet and outlet ports.

• The valve seat seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.

• The QRJ comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response.

• Color anodized aluminum options (Silver, Red, Blue, Purple, Black).

• Multiple inlet and return port options for many install configurations.

• Internal return spring pressure tuned for fastest response. Custom spring options are available for other configurations.

• When Ordering, the Body, and 2 Flange sets will be selected.
