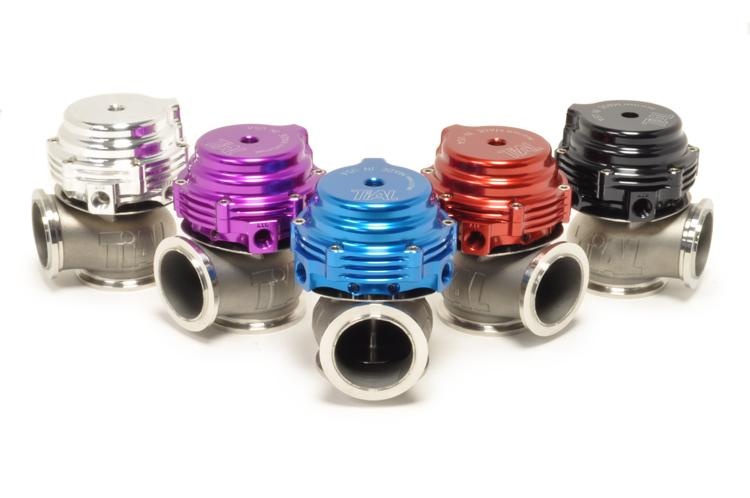

WASTEGATE TIAL MV-S 38MM

WASTEGATE TIAL MV-S 38mm

The MV-S 38mm unit is much more compact than its F38 predecessor - standing only 3.7” in height. The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy!

Technical Features:

-Inlet Flange: 1.75" OD, Outlet Flange: 1.50" OD.

-Spring Pressures .3bar to 1.7bar Included

-High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer produt life compared to competing designs.

-High temperature silicone Nomex reinforced actuator diaphragm.

-17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resists "relaxing" at temperature to 483 ºC (900ºF).

-Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.

-All Stainless Steel hardware.

-Mating weld flanges are 304L.

-3 lower ports and 2 top ports for easy install, no need to rotate the actuator top at all, plugs included for unused ports.

-Air Ports (5): M10 x 1.0, Water Ports (2): M8 x 1.0.

-Ultra compact design fits in very tight spaces, the unit stands only 3.7" tall, more compact than any other external wastegate on the market today.

-V-Band inlet and outlet make install easy, flanges and clamps are in the box.
