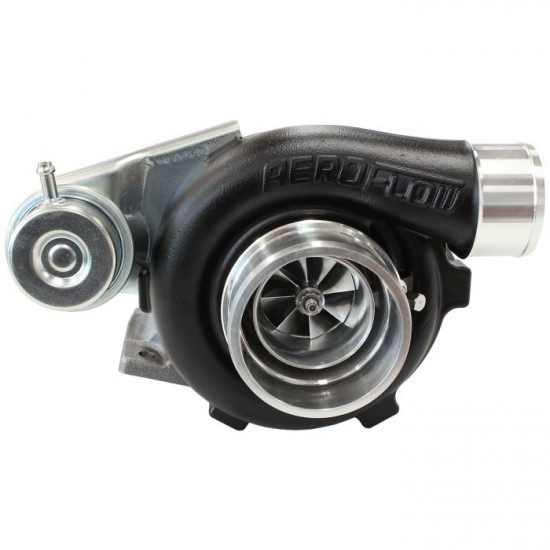

BOOSTED 4628 .86 200-475HP,HI TEMP BLACK FINISH (GTXII 2860R)

DETALHES

REFERÊNCIA: AF8005-2001BLK

DESCRIÇÃO:
BOOSTED 4628 Turbocharger Specifications Recommended horsepower rating: 200-475HP Recommended engine displacement: 1.4L to 2.5L - Dual ceramic ball bearing - Billet aluminium compressor wheel - Ported shroud compressor cover - Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010) - Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used) - T25 / T28 single entry turbine inlet flange - SiMo-nodular cast iron rear housing - 5-bolt turbine outlet flange - M14 x 1.5mm coolant port thread - 7/16"-24 oil feed fitting thread - 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size - M8 x 1.25mm 5-bolt turbine outlet flange - Internal wastegate actuator with 8.7psi spring Compressor Specifications Inducer: 46mm Exducer: 60.1mm Extended Tip: 62.24mm A/R: 0.60 Compressor Inlet: 3"Slip fit Compressor Outlet: 2"Slip fit Turbine Specifications Inducer: 53.9mm Exducer: 47mm A/R: 0.86 Turbine Inlet Flange: T25 / T28 Turbine Outlet Flange: 5-Bolt Wastegate Internal wastegate with 8.7psi actuator

ESPECIFICAÇÕES: 5000g
